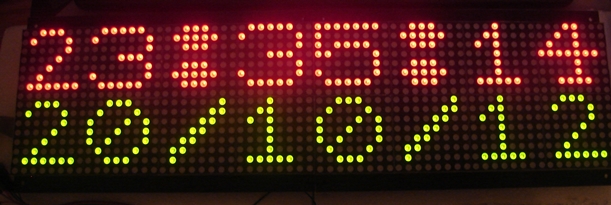

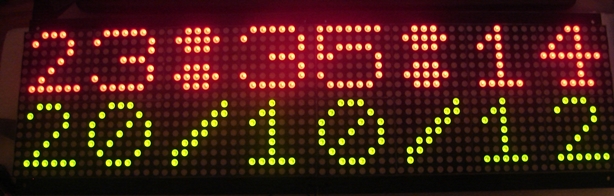

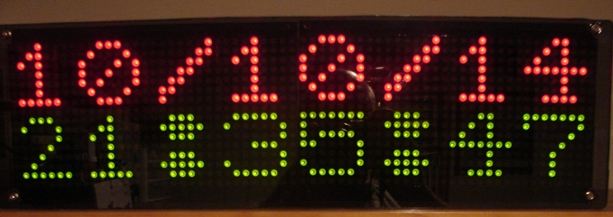

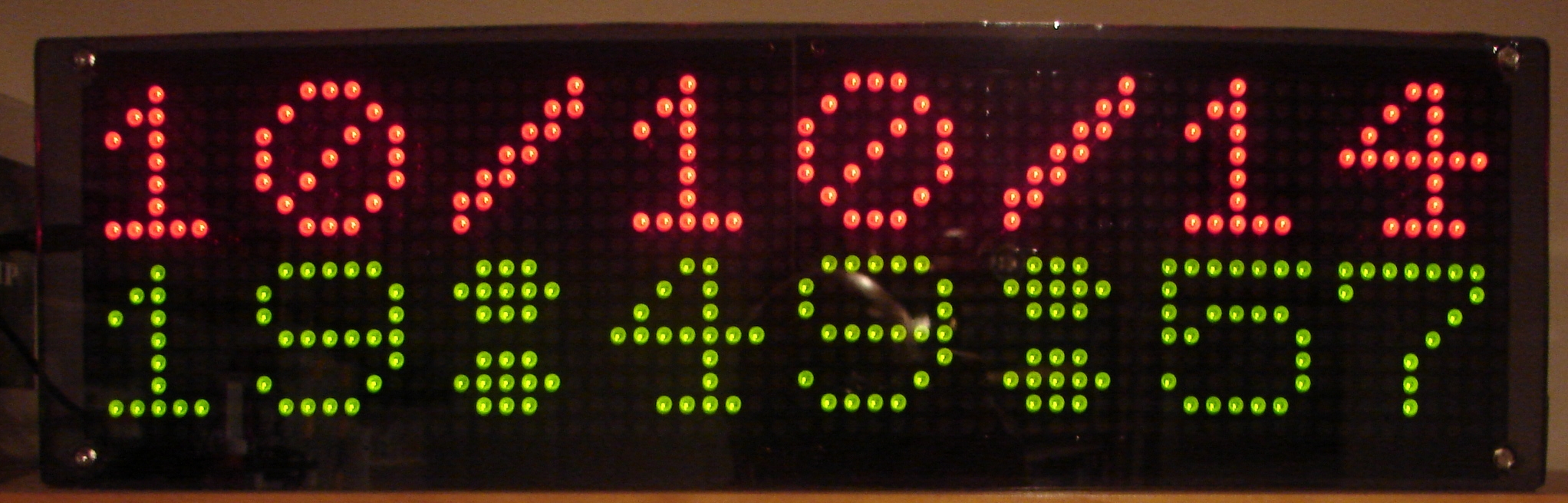

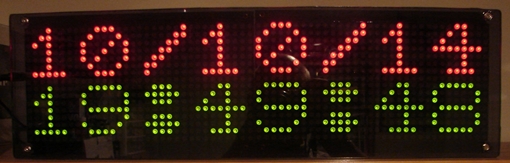

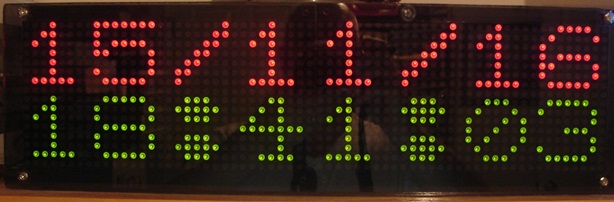

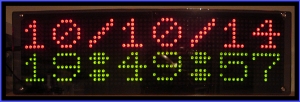

The Bi Color Clock.

Mini clock

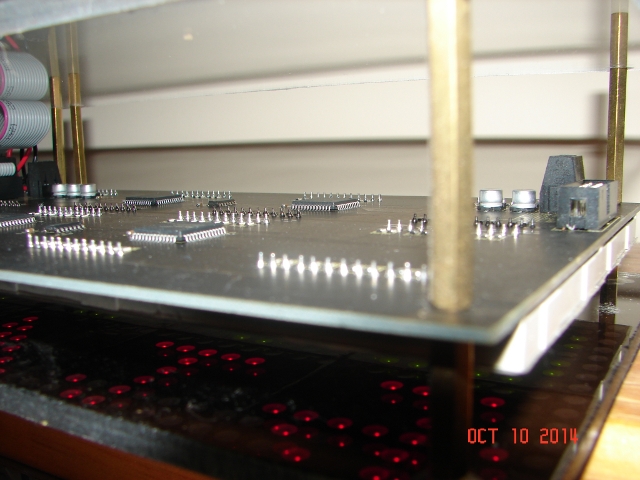

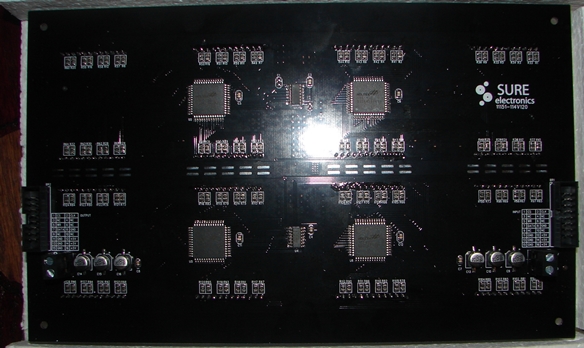

  • This page is about the matrix bi-color displays from Sure electronics.
  • I used 2 displays.
  • This clock is running for over 4 years now, is accurate and without a glitch.

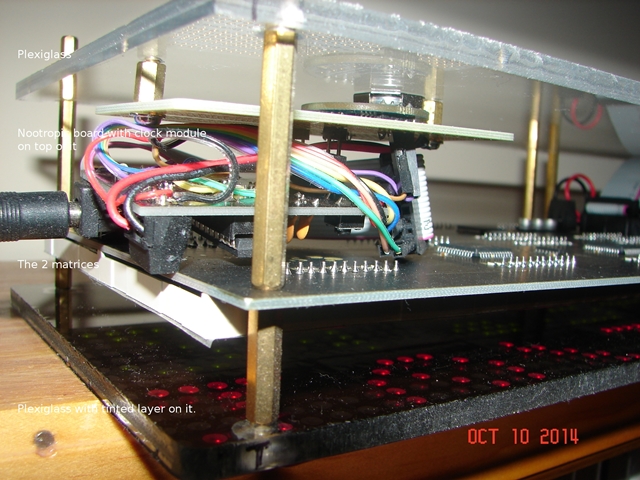

  • Parts list:
  • 1 Arduino Uno #50 or Nootropics board #1072.
  • 1 DS1307 #264 clock from Adafruit.
  • DE-DP14211 / 3216 Bicolor LED 5mm Dot Matrix Display.
